Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wetrans
  • Model Number: HD KIT 2408S B
  • Type: Analog Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: dome
  • Camera Style: Dome Camera
  • DVR Channels: 8CH
  • DVR compression format: H.264
  • TV system: PAL/ NTSC
  • Power Adaptor: 8-port 12V 2A
  • Cable: 18.3m video and power cable

Packaging & Delivery

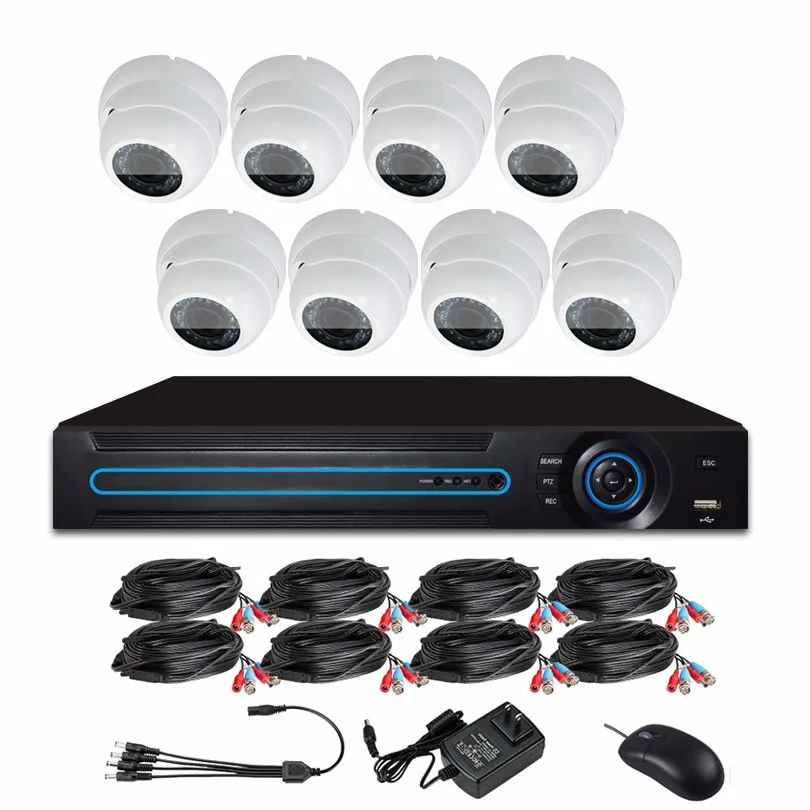

Packaging Details 1 x 8CH 720P real time HD DVR
8 x IR Metal dome camera
8 x 15M Video and Power all in one Cable
1 x DC12V/2A Power Adaptor for DVR
2 X 4 Port power adaptor for camera
Delivery Time 3-5 days for sample, 7-15 days for quantity order

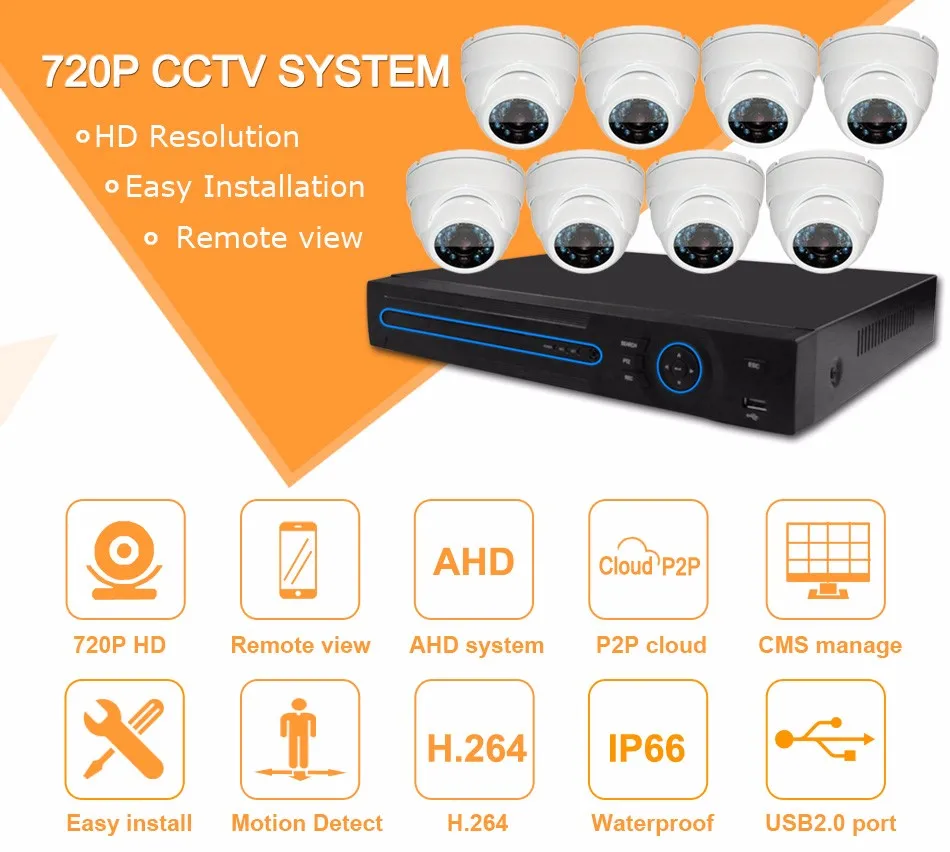

CMOS Sensor and Infrared 720P 8CH HD KIT All in One 8CH DVR Diy CCTV Kit System

1.   High-performance image sensors, with Megapixels resolution

2.   Up to 500 meters lossless transmission with 75-3 coax cable

3.   Support analog HD output
4.   High efficiency, long-distance, real-time transmission
5.   Support 3D noise reduction, Super low illumination

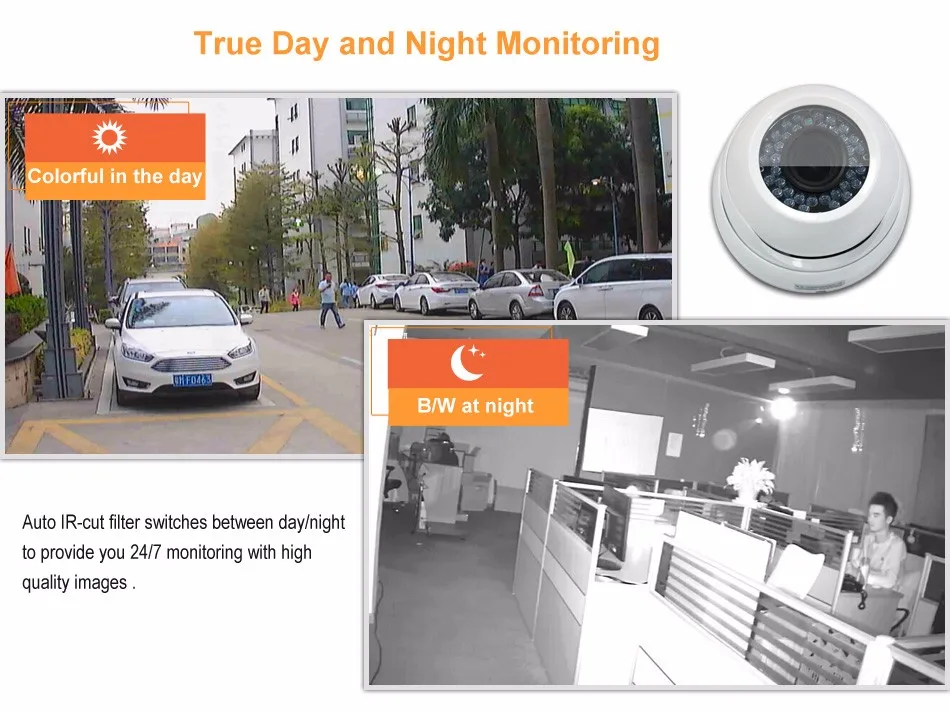

6.   IR cut function, Day@Night surveillance
7.   UP to 20 meters IR Distance
8.   Lightning protection

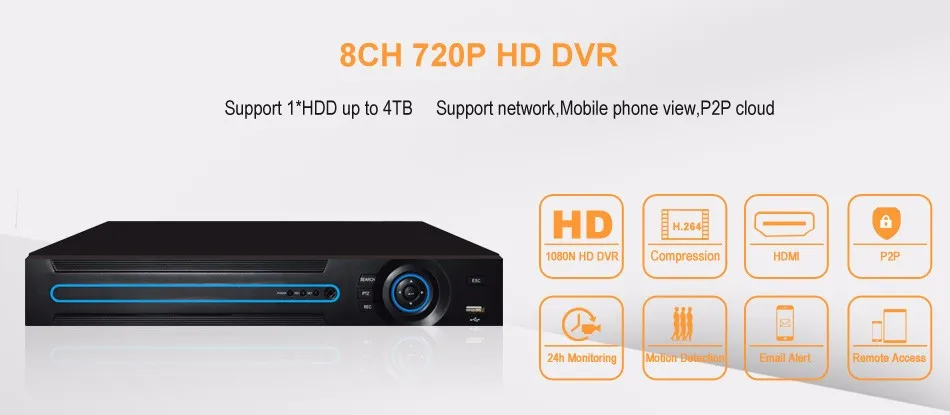

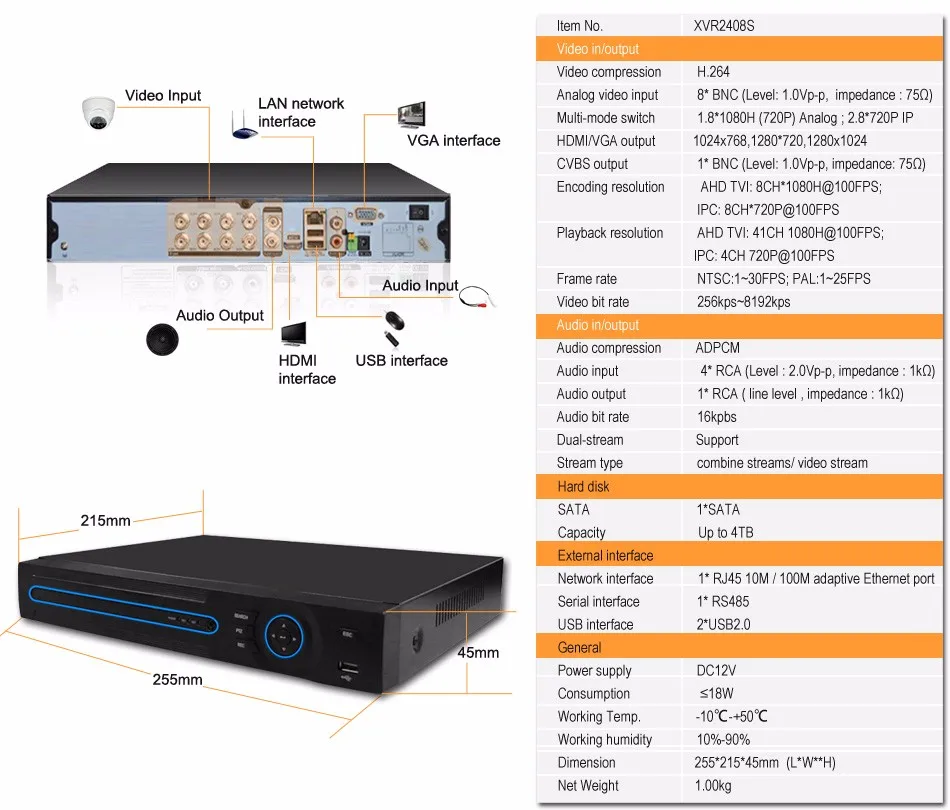

DVR specification

Item No.

XVR2408S

Video in/output

Video compression

H.264

Analog video input

8* BNC (Level: 1.0Vp-p, impedance : 75Ω)

Multi-mode switch

1.8*1080H (720P) Analog

2.8*720H(720P) IP

HDMI/VGA output

1920x1080, 1024x768,1280*720,1280x1024

CVBS output

1* BNC (Level: 1.0Vp-p, impedance: 75Ω)

Encoding resolution

AHD/TVI: 8CH*1080H/720P@100/120fps; IPC 4CH*5MP@40fps; 9CH*3MP@145fps

Playback resolution

1CH 1080H/720P@25fps or 8CH CIF real time playback

Frame rate

NTSC:1~30FPS; PAL:1~25FPS

Video bit rate

256KB/384KB/512KB/640KB/768KB/1MB/1.5MB/2MB/2.5MB/3MB/4MB/5MB/6MB/8MB

Audio in/output

Audio compression

ADPCM

Audio input

4* RCA (Level : 2.0Vp-p, impedance : 1kΩ)

Audio output

1* RCA ( line level , impedance : 1kΩ)

Audio bit rate

16kpbs

Dual-stream

Support

Stream type

combine streams/ video stream

Hard disk

SATA

1*SATA

eSATA

No

Capacity

Up to 4TB

External interface

Network interface

1* RJ45 10M / 100M adaptive Ethernet port

Serial interface

1* RS485

USB interface

2*USB2.0

Alarm in/out

NO

General

Power supply

DC12V

Consumption

≤20W

Working Temp.

-10oC-+50oC

Working humidity

10%-90%

Dimension

255*215*45mm (L*W**H)

Net Weight

1.00kg

Camera specification

Model No.

TR-AHD630

Image sensor

1/4" CMOS sensor

Chipset

FH8532+H42

Effective Pixels

1280(H)×720(V)

IR LED , Lens

24PC*F5 LED . 3.6mm lens

IR Distance

20m

Waterproof

/

Lowest illumination

0.02Lux@(F1.2, AGC ON), 0 Lux (IR ON)

OSD Menu

coaxial cable control via DVR directly (UTC)

Electronic Shutter

1/50s~1/60,000s

Video Frame Rate

25/30fps@2048×1536P

Video Output

1 channel

Smart IR Control

Support

Day/Night

Auto(ICR) / Color / B/W

Digital WDR

Support

SNR

>50 dB

Noise Reduction

2D/3D DNR

Working Environment

-20°C~+50°C / Less than 95%RH

Power Consumption

< 5W

Power Supply

DC12V±10%

Weight

0.5KG
